How to Replace a Door Slab
How to replace an exterior door slab
Replacing a door is a project within the capabilities of most
do-it-yourselfers. Throughout the installation, take care not to damage or disturb the door
frame and trim. These instructions are general; always follow the manufacturer's directions for
the specific product you are using. Your retailer will help you plan the project and advise
you on what products are available to help.
To remove the original door, open it and place a wedge under the outer
corner, taking the weight off the hinges.
Most doors are hung on loose-pin hinges–half of the hinge is
attached to the door and the other half to the door frame, with the two halves held
together by a pin. To remove the pin, tap it up, then pull it out completely. Start at
the bottom hinge and repeat this procedure at the center and top hinges. Now you
can remove the door from its frame.
Unless the old door is badly warped or damaged, set it aside to use as a
pattern for trimming the new one.
Next, remove the hinge leaves from the door and the frame. You
want to install new hinges along with the new door. If so, make sure the new hinges are
same size as the old ones.
Reinstall the hinge leaves on the door frame, using screws that are long
enough to go through the frame and grip well into the stud-wall framing as a security measure.
If the original door is usable as a pattern, place it on the new door,
carefully aligning the top and side edges. The new door may need to be cut down slightly;
mark the difference along the bottom of the old door. If the old door is not suitable for
this purpose, measure the door opening, allowing a 1/8" clearance at the bottom (3/4"
or more if the door opens over carpeting) and 1/16" at the top and sides. Transfer these
dimensions to the new door.

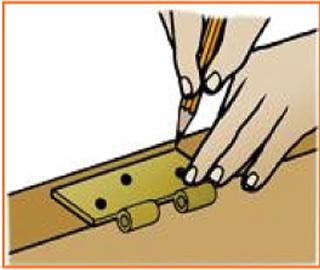

Mark the location of the hinge mortises on the edge of the door, using
old door as a pattern. (Mortises are the carved or routed-out depressions that accept the
blades, leaving them flush with the surface.) If you're not using the old door as a
pattern, place the new door in the opening, wedging it 1/8" from the bottom, and mark the
locations on the door.
Now set the door on its latch edge. With a try square or
combination square and a sharp
pencil or knife, mark a line across the door edge at each hinge location, then use the
template to outline the hinge on the door. This indicates the location of the hinge
With a sharp wood chisel, score around the marked edges for the
you don't cut more deeply than the thickness of the hinge leaf.
Hold the chisel at an angle with its beveled edge down and make
scored area to the proper depth for the mortise.
Clean out the mortise by cutting away the wood chips with the chisel. Place the
leaf in the mortise to check the fit, but do not fasten the hinge yet.
Nearly all interior and exterior doors are taller than 6'. They require three hinges
properly distribute the weight. The middle hinge should be halfway between the top and
Attach the hinge leaves to the door with wood screws.
Place the door in the frame and insert the top pin, then the bottom pin. Check the
If it's satisfactory, close the door and mark the location of the middle hinge on the door
Remove the door (bottom hinge pin first, then top).
If there were three hinges on the original door, your middle hinge should use
door frame mortise as the old hinge. If there were only two hinges, use the hinge leaf as a
outline the location of the intermediate hinge on the door frame. Cut the mortise on the
frame as described
previously for door mortises. Attach the intermediate hinge leaf to the door frame.
Set the door in place and insert the hinge pins, working top to
Plastpro, Inc. will not be responsible for any injuries, damages, claims, actions
any kind whatsoever arising from the use or misuse of the information and/or instruction
*For Installation Instructions, please check our website www.plastproinc.com
